Batterlution PowerGo 2500 & 5000

Plug & Play Installation - True No-Wiring Design

AC Plug-in Batterie ESS

PowerGo 2,5kWh & 5kWh

    Plug & Play AC Battery Storage System with Smart Features

    • Retrofit Ready - Plug & Play Installation seamlessly integrates with existing solar PV systems
    • HEMS Compatible - Works with Home Energy Management Systems for dynamic electricity pricing
    • Grid Interactive - Supports aggregator control functionality for grid services participation
    • Instant Setup - True AC Plug-in Battery Storage System requiring no electrical expertise

    Communication Methods and Protocols

    • Multiple connectivity options: Bluetooth, WiFi, Ethernet.
    • Supported interfaces: Modbus RTU, Modbus TCP/IP, MQTT API.

    Contact us about PowerGo Series
    PowerGo Series ac battery

    Final Piece to Complete Your Plug in Battery Storage

    Your complete energy solution is here. PowerGo delivers a simple plug in battery storage with advanced AC battery options (2.5/5kWh), featuring AC coupled battery storage technology to power your days and nights - effortlessly.

    Batterlution PowerGo series AC Speicher: the 2.5 kWh and 5 kWh models. Both feature a sleek black design with a green LED light, showcasing scalable capacity for AC Coupled ESS home solar and backup power.
    The compact Batterlution PowerGo 800W Output AC battery unit installed outdoors on a wall, connected via a power cord to an outlet. Its sleek grey design blends into the modern architectural setting, with a sunlit living room visible through glass doors in the background, illustrating its use for retrofitting solar energy storage into an existing home.

    Unlock Multiple Working Modes with Plug in Battery Storage

    PowerGo is an advanced AC plug-connected plug in battery storage system that supports multiple operating modes. Whether you need self-consumption mode for existing solar PV systems or smart dynamic tariff charging/discharging in coordination with third-party solutions, this versatile plug in battery storage unit delivers the ideal operating mode for your energy needs.

    Fourthly Manually configure charging and discharging schedules along with power settings by APP to optimize electricity costs.

    Secondly PowerGo intelligently charges from surplus solar power and discharges to the home load circuit via CT monitoring, maximizing self-consumption efficiency.

    Thirdly Like Schedule Mode, this mode supports preset charge/discharge windows, but discharge adapts intelligently to live load demand via CT monitoring.

    Fourth PowerGo offers third-party HEMS integration with price-driven charge/discharge control via MODBUS (RTU/TCP) or MQTT connectivity.

    Your Integrated Solar Power with Battery Storage Solution

    Elevate your solar energy with our battery storage retrofit—seamlessly integrate with existing systems for robust,

    all-weather performance and instant 5-second setup.

    PV System Retrofit

    • Retrofit BESS for existing PV systems.
    • Wired CT or Wireless Meter Support.
    • Shelly EM & Shelly Plug Gen3 Support.

    Coummunication

    • Bluetooth 5.0
    • WLAN 2.4G/5.0G
    • Enthernet              • RS485
    • HTTP, UDP, Modbus TCP/IP, Modbus RTU, MQTT API, MQTT Broker Protocols support

    Battery

    • Multiple layouts BMS protection
    • Charge cycles 6000+
    • Built-in heating system for winter concern
    • Fire suppression module

    Quick Installation

    • 5-Second Plug and Play
    • APP Set

    Quick Installation in a few minutes

    PowerGo Series AC Plug-in system

    First Step Plug-in

    1.Connect Your Device with PowerGo App
    2.PowerGo App Analyze Optimize Device Data
    3.PowerGo Switch Between Device Modes
    4.PowerGo Track Device Usage in Detail
    5.Configure WiFi in PowerGo App

    Second Step App Set

    PowerGo Retrofit PV Storage

    PowerGo Retrofit PV Storage: Easy AC Battery Integration & Dynamic Tariff Utilization

    PowerGo-Akku Nachrüstsystem
    The PowerGo plug in battery storage system can be combined with various electricity meters such as the Shelly EM, Shelly Plug, Eco Tracker, CT modules, or other smart devices to create a versatile AC-coupled storage solution for retrofitting photovoltaics (PV-Speicher nachrüsten). It is ideally suited for households with existing photovoltaic systems that want to quickly add an AC battery to maximize their self-consumption of solar power. Additionally, this AC power storage unit supports various communication methods and can be integrated with Shelly devices and other third-party smart devices to leverage dynamic electricity tariffs. This enables the retrofitting of a solar storage system that optimally adapts to variable energy prices—making it perfect for integration into existing smart home systems with Shelly components.

    The PowerGo plug in battery storage system can be combined with various electricity meters such as the Shelly EM, Shelly Plug, Eco Tracker, CT modules, or other smart devices to create a versatile AC-coupled storage solution for retrofitting photovoltaics (PV-Speicher nachrüsten).

    System schematic diagram illustrating how the Batterlution PowerGo Series AC Speicher (energy storage system) connects to and integrates with multiple home energy monitoring devices. Key connections shown include a CT clamp for main load measurement, a Shelly Plug for appliance control, a Shelly EM meter, an Eco Tracker, and smart meters (via P1 port), all communicating data to enable smart energy management and optimization through the home's power distribution panel.

    1200W AC Fast Input, 800W Stable AC Output

    The PowerGo series exemplifies the practical benefits of AC coupling in a compact home energy storage solution. Thanks to its built-in AC coupling technology, the system accepts 1200W of rapid AC charging directly from your existing solar inverter or the grid. It then delivers a stable 800W of pure sine wave AC output, reliably powering devices like rice cookers, projectors, and gaming consoles. This streamlined AC-coupled design eliminates complex DC rewiring, delivering clean battery-powered AC electricity for versatile indoor and outdoor use.

    Data Protection Certified to the Highest Standards

    • Integrated bi-directional grid-tie inverter with VDE-AR-N 4105 and EN50549 certification.
    • Built-in battery management system (BMS) for LiFePO4 battery cells.
    • Full compliance with IEC62619 and IEC62109 safety standards.
    • Standard Schuko plug quick connection (subject to European electrical regulations).

    Official product certifications and compliance badges for the Batterlution PowerGo series, including the CE Mark (European Conformity), RoHS (Restriction of Hazardous Substances), DVE (German Electrical Association) certification, REACH compliance, and IEC (International Electrotechnical Commission) standards, demonstrating adherence to stringent international safety, environmental, and quality regulations.

    Specifications

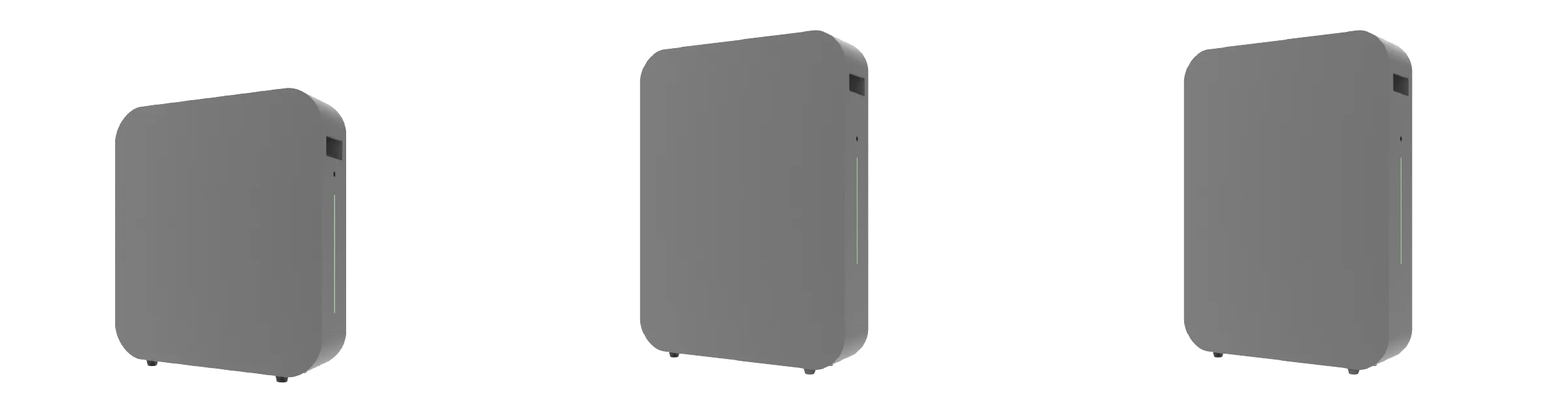

    AC Plug-in Battery PowerGo Series

    Main

    Model

    PowerGo 2500

    PowerGo 5000

    PowerGo 5000 BK

    Rated AC Power

    800 W Output,1200 W Input

    Battery Capacity

    2.56 kWh

    5.12 kWh

    5.12 kWh

    Weight

    38 kg

    60 kg

    60 kg

    Grid Input

    Cord Cables(Charging)

    1 Phase (L+N) +PE

    Input AC Power

    0~1200 W

    Input Current Range

    0~6 A

    Input Voltage Range

    220/230 Vac

    Input Frequency Range

    48 Hz-51 Hz

    Output

    Output AC Power(Grid-tied)

    0~800 W

    Output Current Range

    0~4 A

    Output Voltage Range

    L~N:184 Vac~253 Vac

    Output Frequency Range

    48 Hz-51 Hz

    Backup

    Output AC Power

    0~1600 W

    Output Current

    0~7 A

    Output Voltage

    230±5% Vac

    Max. Peak Output Power

    3200 VA

    Battery

    Battery Rated Voltage

    51.2 Vdc

    Energy Capacity

    2.56 kWh

    5.12 kWh

    5.12 kWh

    Battery Type

    Prismatic LiFePO4

    Life Cycling (0.5℃ 25℃）

    6000

    Operation Temperature

    Charge:0~45 ℃ / Discharge:-20~45 ℃

    DOD

    90%

    Fire Supression Module

    Supported

    Efficiency

    Grid Charging (AC->BAT)

    94%

    Battery Dischargeing (BAT->AC)

    93%

    Eco-mode

    <20 W

    Shutdown Leakage Current

    <100 uA

    General

    Size

    535 x 600 x 145 mm

    585 x 785 x 145 mm

    585 x 785 x 145 mm

    Package Weight

    39 kg
    61 kg
    61 kg
    Connection

    European Standard Schuko Plug

    Ingress Protection

    IP54

    Communication

    WIFI, Eternet, Bluetooth, RS485
    (UDP, Modbus TCP/IP, Modbus RTU, MQTT API, MQTT Broker)

    Certification

    EN IEC 61000-6-1/-2/-3/-4
    EN IEC 62619
    EN IEC 62109-1-2
    EN 50549-1/-10
    VDE-AR-N 4105
    UN 38.3

    What's Next for Us? See You at a Show

    Our journey with innovation continues. Visit us at an upcoming international show to connect with our team, explore live demos, and have your questions answered by our product specialists.

    electronica Nov 11th~12th 2024
    intersolar 2025
    Visit the Batterlution booth (Hall13-N8.1) at Solar Solutions Düsseldorf 2025, December 3-4.
    intersolar 2026
    Get exclusive offers at our Booth →

    Contact Info

    • Request a Quote
    • Become a Dealer
    • Find a Dealer
    • Download the App
    • Technical Consultation
    • Request Resources

      ASK ME AND GET AN IMMEDIATE ANSWER!

      or

      EMAIL US

      *Please email me directly to avoid our responses being marked as spam.

      FAQs

      Can the PowerGo battery be used as battery storage for home balcony power systems?

      Yes, the PowerGo AC battery can be connected as an independent plug and play power storage unit to any balcony power system via a socket – regardless of the inverter model. Compared to DC systems such as the Marstek B2500, this batterie plug and play solution requires only a standard socket on the same 230V circuit as the solar installation.

      Can the PowerGo battery be used as a three-phase AC storage system?

      Yes, the PowerGo battery can be retrofitted as a three-phase AC storage solution. Although it operates as a single-phase plug-in power storage system, billing is handled by three-phase smart meters based on the total three-phase power consumption. Thus, energy savings on each phase contribute to a reduction in overall electricity costs.

      Does the PowerGo storage system require installation by a certified electrician?

      Not required. PowerGo is designed for PV storage retrofitting without an electrician. If your household already has a photovoltaic system or a balcony power plant and you want to retrofit a solar battery, PowerGo is an ideal choice. It is a plug-and-play storage unit that is optimally suited for DIY solar storage.

      What distinguishes the PowerGo AC storage unit from a conventional solar battery?

      The PowerGo battery is a power storage unit that charges and feeds electricity via a socket, making it a plug in battery storage system that is truly plug & play. Unlike PV storage systems with solar input, it cannot directly connect to solar panels. It is an AC battery designed as an AC-coupled battery storage unit exclusively for retrofitting photovoltaics, serving as a pure AC storage solution and a versatile plug in battery.

      What should I know about the PowerGo AC battery's noise, heat, and ideal setup?

      The PowerGo AC battery operates quietly with minimal heat output, making it a user-friendly plug in battery storage solution. Its advanced thermal management ensures safe temperatures without noisy fans. For optimal performance, we recommend placing this AC-coupled storage unit in any well-ventilated indoor area—such as a garage, utility room, or office—where it has adequate clearance and access to a standard power outlet.

      Does the PowerGo storage system include an inverter?

      Yes, PowerGo is a storage unit with an integrated inverter. The all-in-one design incorporates an AC-coupled inverter.

      Why choose the PowerGo AC Battery?

      The PowerGo solution enables simple retrofitting of solar storage, power storage, and PV storage for existing systems. As an AC-coupled storage unit, this modern AC battery storage combines the advantages of a versatile AC power storage system with true plug-and-play functionality. Whether you want to retrofit your existing battery storage, add a new AC storage system, or upgrade your PV system storage – this AC-coupled battery unit is the ideal plug in battery storage solution.

      Key features:

      • Full-fledged AC battery storage with grid interconnection

      • Easy integration as a compact AC power storage unit

      • Compatible with all single-phase grid-connected PV systems – whether used with a balcony power plant or a wall-mounted inverter system with grid connection

      This makes every retrofit into an AC-coupled storage system as simple as using a plug in battery!
