The MOSFET, which stands for Metal-Oxide-Semiconductor Field-Effect Transistor, is an electronic device used to amplify and switch electronic signals. Due to its superior switching speed and the ability to generate minimal current as needed, MOSFETs are fundamental components in many modern electronic devices, including solar photovoltaic systems.

How to test mosfet

The basic testing procedure:

Testing MOSFETs is crucial, and here is a basic testing procedure:

  •        Prepare a continuity tester or multimeter: Set it to the ohm (Ω) range. Connect one lead to the source terminal and the other lead to the drain terminal. If the multimeter displays an infinite resistance (no continuity), it typically indicates that the MOSFET is in good condition.
  •        Switch to diode testing mode: Connect one lead to the source terminal and the other lead to the gate terminal. If the reading falls between 0.4 and 0.9, the MOSFET is likely in good condition. A reading of 0 indicates a possible short circuit, while an infinite reading may suggest an open circuit.
  •        Regular testing of MOSFETs is essential to ensure their proper functioning in electronic circuits, including those used in solar photovoltaic systems.

The BMS solar meaning of solar energy storage system

BMS (Battery Management System) plays a crucial role in solar energy storage systems. In simple terms, BMS is a system designed to optimize battery performance, extend battery life, and ensure battery safety. By utilizing BMS, solar energy storage systems can maintain efficiency while ensuring the safety and longevity of the batteries, maximizing the release of solar energy potential over an extended period.

the solar mean of BMS

State Monitoring and Measurement:

       BMS monitors critical parameters of the battery, such as voltage, current, temperature, and more. These readings help determine the operational status of the battery, including remaining capacity and health.

Battery Protection:

       BMS prevents overcharging, over-discharging, and over-temperature conditions for the battery. If the battery approaches these limits, the BMS will disconnect the battery to prevent damage or safety issues.

Performance Optimization:

       BMS balances the charging and discharging of individual batteries within the battery pack to enhance the overall performance and efficiency of the battery system. Imbalances in batteries can lead to some cells being over-discharged or overcharged.

Health and Lifespan:

       BMS helps maintain the health of the battery and extends its lifespan. By monitoring the battery's condition and adjusting charging/discharging in a battery-centric manner, BMS can reduce the aging of the battery.

Lithium Battery for Home Inverter

The types of lithium batteries can vary, with the most common types being lithium-ion batteries and lithium iron phosphate (LiFePO4) batteries. Lithium-ion batteries excel in energy density and overall performance, making them suitable for independent power systems. Meanwhile, LiFePO4 batteries are of particular interest due to their longer lifespan and better robustness, especially in scenarios involving numerous charge-discharge cycles and high temperatures.

Types of Lithium Batteries

Low-Voltage Battery

Voltage Rating:

  • Generally in the range of a few volts to tens of volts, for example, common 6V, 12V, 24V, etc.

Capacity and Output Power:

  • The capacity can vary according to use, but low-voltage batteries generally have a lower output power. This makes them particularly suited for use in applications requiring lower power, such as household appliances or small devices.
  • The capacity of low-voltage batteries is generally 3-10kWh, with output power in 200-400V.

Suitable for use in household battery systems: small devices, drones, and even photovoltaic energy storage systems.

High-Voltage Battery

Voltage Level:

  • Generally refers to batteries that operate at several hundred or even thousands of volts. For example, in electric vehicle applications, the working voltage of the battery system can go up to 400V to 800V.

Capacity and Output Power:

  • These batteries often have a higher capacity and output power, making them suitable for applications requiring a lot of power, such as electric cars and industrial equipment.

  • High-voltage batteries have a typical capacity between 10-70kWh and output power between 200-400V.

They are mainly used in electric cars, plug-in hybrid cars or the grid's energy storage systems.

Balcony PV Mini Battery

Voltage Rating:

  • Generally in the range of a few volts to tens of volts, for example, common 6V, 12V, 24V, etc.

Capacity and Output Power:

  • Capacity can vary based on application, with output power under 800W, perfectly aligning with European region balcony photovoltaic policies for the limit.

  • Therefore, they are typically used in balcony photovoltaic energy storage systems. Battery capacity is generally in the 3-10kWh range.

Suitable for mini-type solar systems or balcony PV systems.

In general, the choice of batteries depends on how you intend to use them.

If you aim to establish an independent power system (e.g., for a cabin far from the grid), you'll need a larger battery capacity than a home that uses batteries as a backup power source during grid outages, the high-voltage battery is the best choice.

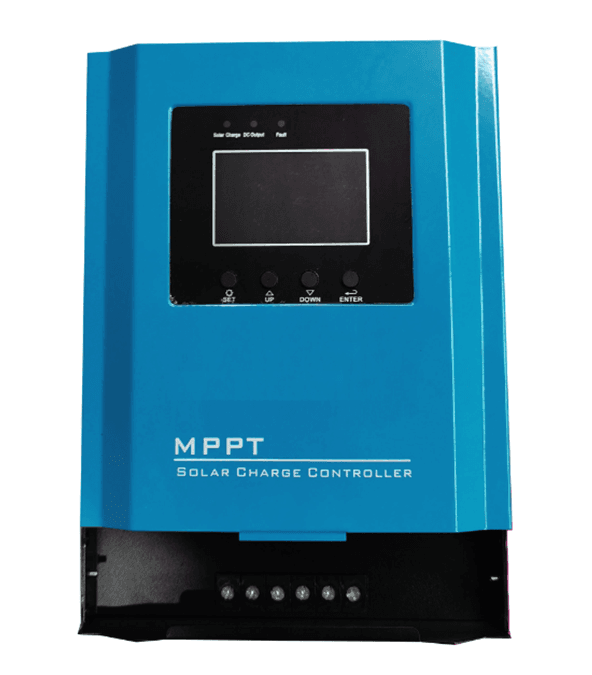

Optimising Energy: MPPT Solar Charge Controller for Lithium Batteries

The MPPT solar charge controller used for lithium batteries is a highly specialized device.

MPPT stands for "Maximum Power Point Tracking," referring to the technology that keeps the solar panels operating at the maximum power output point. This maximizes the potential of solar panels and improves the efficiency of energy utilization.

This type of charge controller is particularly suitable for lithium batteries because it can precisely control the battery charging process, preventing issues such as overcharging, over-discharging, overcurrent, and overheating, thus protecting the battery from damage.

An excellent MPPT lithium battery charge controller has the following features:

  • Optimized Energy Collection: By tracking the optimal operating voltage, it ensures that the solar panels operate at the maximum power point, maximizing energy harvesting.
  • Battery Charging Management: It can control the battery and provide an appropriate charging current to extend the battery's lifespan while preventing overcharging and over-discharging.
  • Display and Monitoring Information: Many MPPT controllers come with an LCD screen that displays real-time information such as charging current, battery voltage, and environmental temperature. Users can intuitively understand the operating status of the solar energy system.
  • Adjustable Charging Parameters: Users can adjust charging parameters according to specific battery types, maximizing the fulfillment of the battery's charging requirements.
MPPT product2

LifePO4 Inverter: What You Need to Know

An LiFePO4 inverter is a power inverter that utilizes LiFePO4 (Lithium Iron Phosphate) batteries. LiFePO4 represents Lithium Iron Phosphate batteries, known for their high energy density, excellent heat resistance, and longer lifespan, making them an ideal choice for solar energy storage systems. The primary function of an inverter is to convert direct current (DC) into alternating current (AC). When solar panels generate DC, and the LiFePO4 batteries store this energy, the inverter converts the DC into AC for use by household appliances.

Advantages of LiFePO4 inverters:

  • Compatibility: LiFePO4 inverters are typically compatible with various types and brands of solar panels and Lithium Iron Phosphate batteries.
  • High Efficiency: With the use of Maximum Power Point Tracking (MPPT) technology, the inverter ensures that solar panels operate at their maximum power output point, thereby improving the efficiency of energy harvesting and conversion.
  • Ease of Management: Many LiFePO4 inverters are equipped with LCD screens that can display real-time information such as charging status, battery voltage, environmental temperature, etc. This facilitates user monitoring and management in real-time.

The Role of Rechargeable Inverters

Rechargeable inverters are a type of chargable inverter device, mainly used to convert Direct Current (DC) into Alternating Current (AC).

This device is usually equipped with a charger and can be charged from the mains (or renewable energy sources such as solar panels). Its main advantages are easy to carry and use, and it can provide electricity without fuel, and it can usually be directly plugged into a standard power socket. This can provide a steady and stable power supply anytime and anywhere.

Here are the general connection steps:

How rechargeable inverters connect batteries with photovoltaic systemsThe process of connecting Recharge inverters and batteries is relatively simple. Generally, inverters and batteries are directly connected by cables.

  • Safety operation: First, ensure that all equipment is turned off to prevent electric shock during the operation.
  • Connect the battery to the inverter: Normally, using a high-quality cable to connect the positive (Red) of the inverter to the positive of the battery, and the negative (Black) of the inverter to the negative of the battery.
  • Connect to the grid: After the battery and inverter are connected, the inverter needs to be connected to the power grid. This usually requires a professional electrician because it involves home electrical systems.
  • Turn on the equipment: Finally, turn on the inverter and then your battery system.

If you want to own your own balcony photovoltaic, then you can click here or picture to find the most suitable balcony PV system and micro battery for you.
