Regenerative Battery Tester for Data Centre
Precision charge/discharge simulation for battery packs with up to 70% energy feedback to the grid.
Designed for ESS testing, UPS commissioning, and industrial battery applications - fully compliant with IEC/GB grid standards.
What It Does - Regenerative Battery Tester
Regenerative battery tester is a high-precision testing solution that simulates real-world battery charge and discharge conditions while feeding up to 70% of test energy back to the power grid. Ideal for ESS, UPS and industrial battery testing, it fully complies with IEC and GB standards.

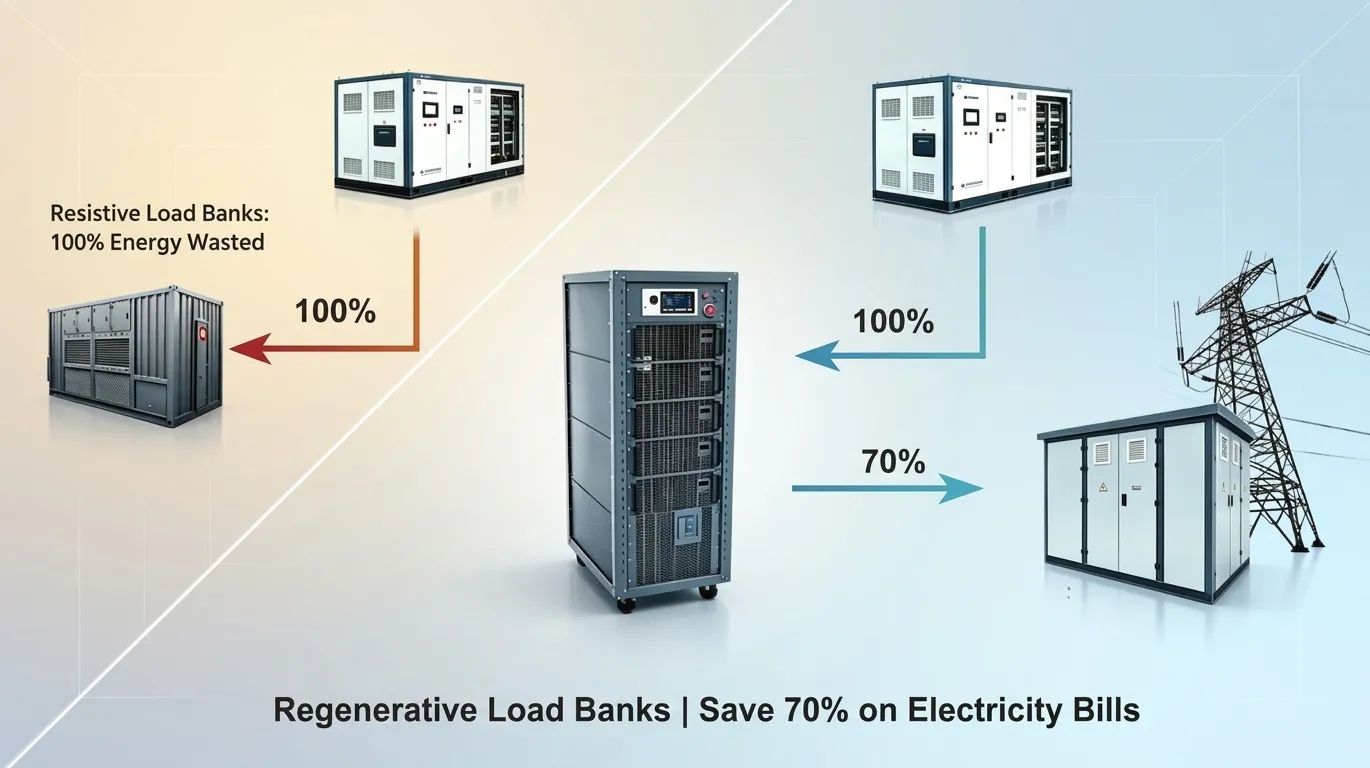

Unlike dissipative testing systems that convert all energy to heat, regenerative testers return power to the grid. No massive cooling systems needed - lower ambient temperatures, less noise.
Supports CC/CV/CP/CR/dynamic modes across a wide DC voltage range of 100V-800V. Covers ESS pack testing, UPS battery commissioning, energy storage system validation, and industrial battery applications.
AC/DC Rectification
The PLC / control unit regulates the current drawn from the DC bus based on your configured load parameters (e.g., 100kW constant power, 0.8 lagging power factor). By precisely controlling absorbed current, the tester simulates the exact load characteristics — resistive, inductive, or capacitive — that the unit would see with a real IT load.
DC Bus Regulation & Load Simulation
The PLC / control unit regulates the current drawn from the DC bus based on your configured load parameters. By precisely controlling absorbed current, the tester simulates exact load characteristics.
DC Bus Stabilization & Filtering
The rectified DC power passes through bus capacitors for voltage stabilization and inductors for filtering - producing clean, stable DC voltage ready for the final inversion stage.
DC/AC Grid Feedback
The internal grid-tied inverter (DC/AC) converts the stable DC power back into AC at the same frequency, phase, and voltage level as the grid - and feeds it back into the facility's distribution system.
Key Features of the Regenerative Battery Tester
High-Efficiency Energy Feedback
High-efficiency energy feedback via bidirectional AC-DC-AC conversion - up to 70% of absorbed test energy is recycled back to the grid, significantly reducing electricity costs and enabling green, sustainable testing.
Minimal Heat, Data-Centre Friendly
Minimal heat generation eliminates the need for high-capacity cooling systems or large air-conditioning loads. Does not raise ambient temperature - ideal for temperature-sensitive environments like data centres, labs, and clean rooms.
Precision Four-Quadrant Load Simulation
Precision four-quadrant load simulation with constant power/current/voltage modes, supporting RLC, harmonic, and transient load conditions. Four-quadrant operation perfectly covers full-condition testing for ESS PCS and UPS equipment.
Safe Grid Connection & Compliance
Built-in grid synchronization, over-voltage/over-current, and anti-islanding protection mechanisms. High power factor and low harmonic distortion on feedback power.
| Dimension | Regenerative Battery Tester (Ours) | Dissipative Load Bank (Traditional) |
|---|---|---|
| Energy Handling | Returned to grid (up to 70%) | Dissipated as heat (100%) |
| Operating Cost | Low (energy returned to grid) | High (all energy dissipated as heat) |
| Cooling Needs | Minimal heat, small or no cooling system required | Large cooling: fans or liquid cooling systems needed |
| Data Centre Impact | Low heat & noise, optimised operating environment | High heat & noise, increases AC cooling load |
| Load Simulation | Full R/L/C/composite + dynamic waveforms | Mainly resistive, limited simulation capability |
| Environment | Lab / data centre / outdoor / renewable energy sites | Lab only / small to medium scale |
Regenerative Battery Tester Manufacturer - Batterlution
Every unit is configured to your exact specification - from DC voltage range and power rating to communication protocol and interface type.
Custom DC Voltage Range
From 100V to 800V DC and beyond - configured to match your battery pack or ESS string voltage. Custom current and power ratings available.
Custom Communication Protocol
Standard Modbus RTU/TCP and TCP/IP; custom protocols available to integrate with your test automation system or BMS.
Custom DC Interface
MC4 connectors, busbar terminals, or custom DC switchgear - interface configured to match your battery pack or ESS cabinet connection standard.
Custom Test Modes & Sequences
Pre-programmed charge/discharge profiles, pulse cycling, calendar aging, cycle life testing. Custom test step sequences configured to your protocol.
Reliable Regenerative Battery Tester Manufacturer
Every unit is assembled, tested, and inspected in our dedicated workshop before leaving the factory.

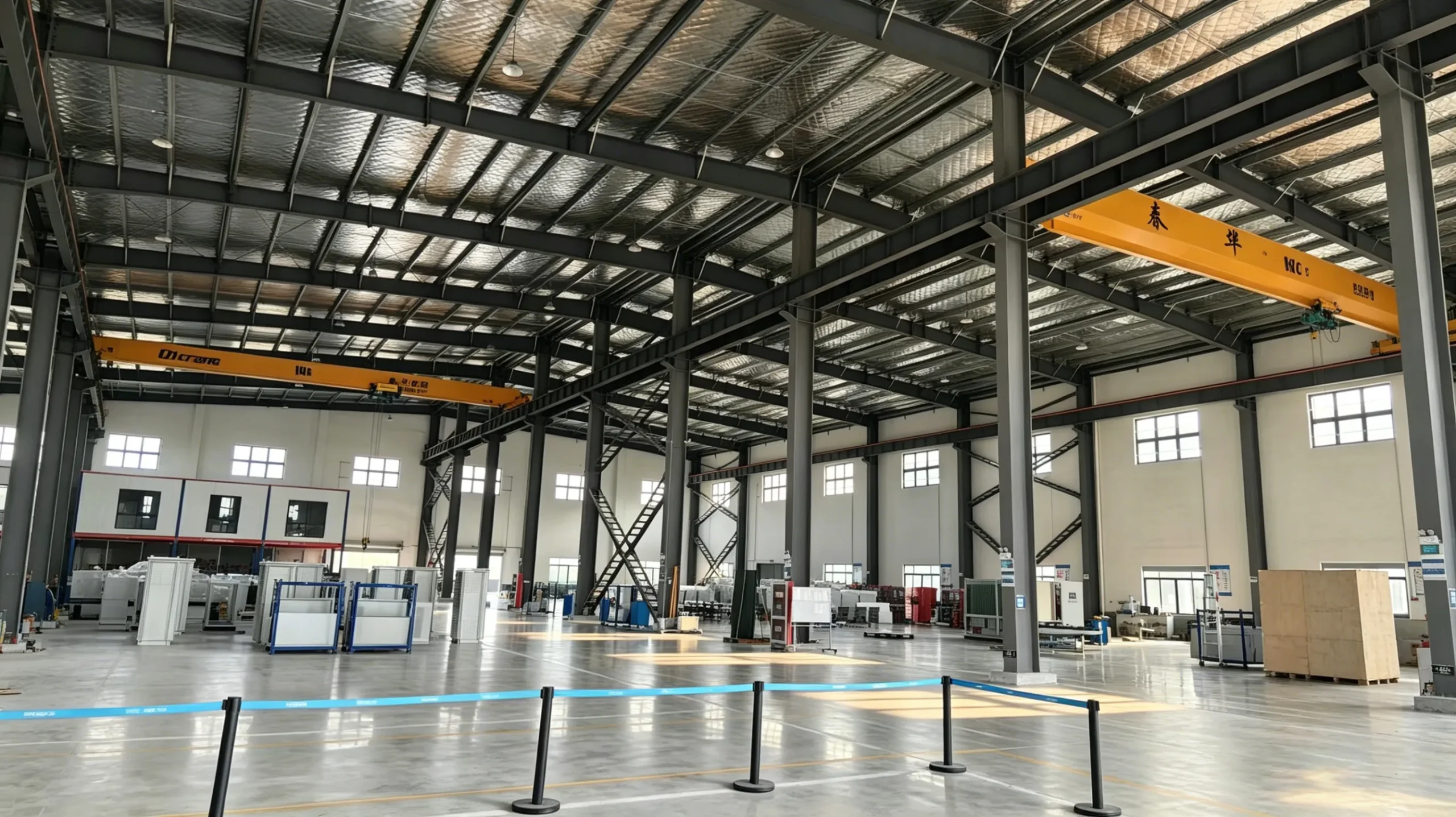

Dedicated Manufacturing Workshop
Purpose-built for high-power regenerative battery testing equipment assembly, quality verification, and performance testing of industrial units.

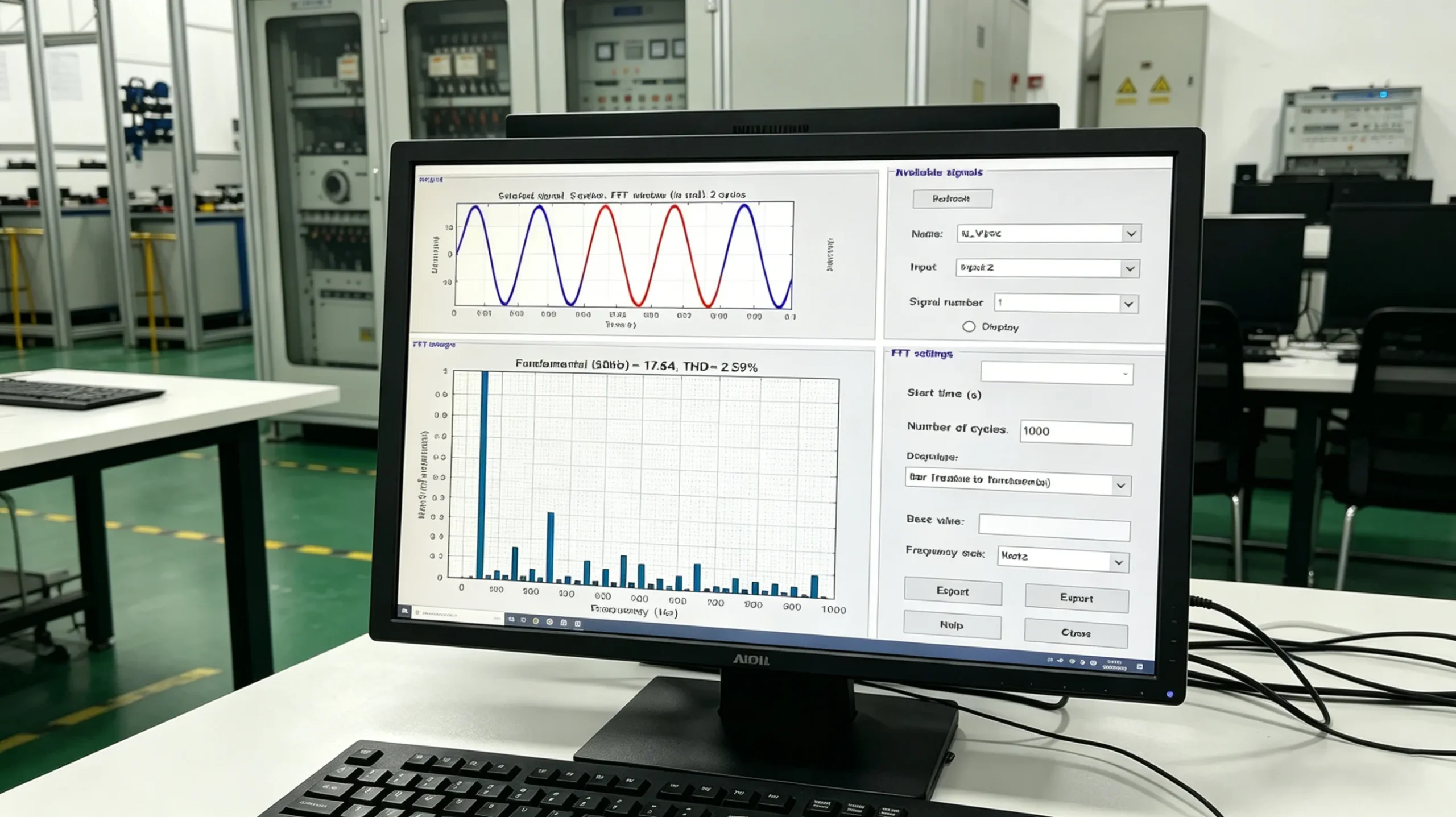

Grid Connection Power Quality Testing
Every unit undergoes full-load grid-tie testing before dispatch. THD, PF, and feedback efficiency confirmed at factory acceptance test.
Software & Control System Validation
PC control software and communication protocols are tested and configured before shipment. Full system integration check included.

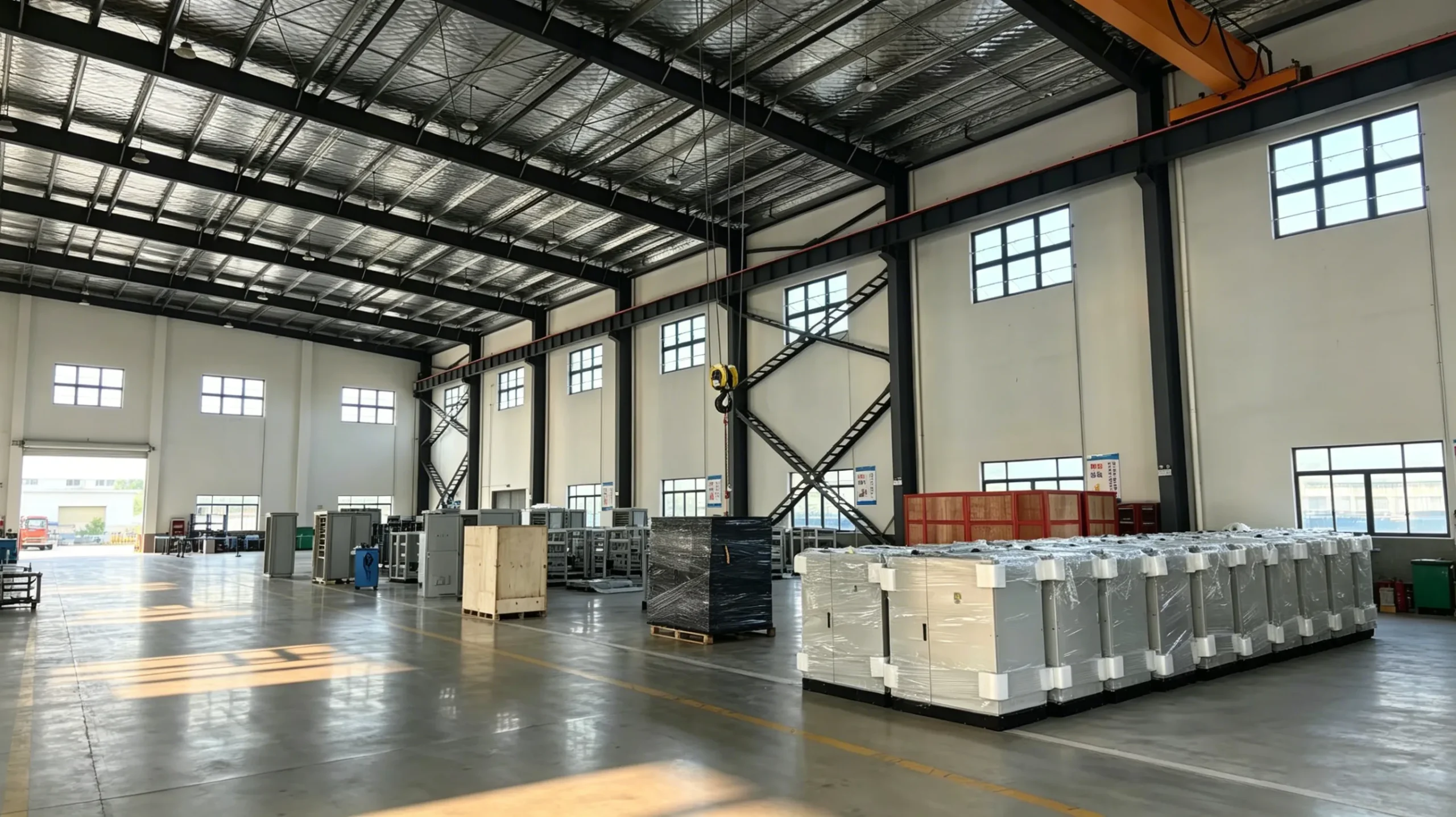

Safe Export Packaging & Pre-Shipment Protocol
Secure export packaging ensures safe worldwide delivery. Full documentation package including test reports, factory acceptance certificates, and user manuals.
Regenerative Battery Tester | Intelligent Control Software
Wireless PC Cluster Control
Wireless centralized control for multiple testers from one PC.
Achieve synchronized charge/discharge control and unified management of parallel units, greatly improving efficiency for large ESS commissioning and multi-pack validation.
Real-Time Parameter Monitoring
Real-time monitoring of all key test parameters.
View DC voltage, current, power, energy feedback rate, grid-side metrics, and test progress on one intuitive dashboard.
Test Log & Report Export
Auto data logging and one-click professional report export.
Generate timestamped test records and standardized PDF/Excel reports for cycle life data, SOH analysis, and compliance documentation.
Applications - Data Centre, Energy Storage & Industrial
ESS / PCS Full-Load & Aging Tests
Full-load and aging validation for energy storage systems (ESS) and Power Conversion Systems (PCS/bidirectional inverters). Simulate real-world charge/discharge profiles at rated power to verify performance and longevity.
High-Power UPS & Generator Acceptance Testing
Energy-efficient acceptance and maintenance testing for large-scale UPS systems and generator sets. Minimal heat output preserves the data centre environment while providing accurate full-load validation.
Data Centre Long-Duration Load Validation
Low-heat, long-duration load verification inside data centre machine rooms. Minimal thermal impact on precision environments - ideal for 24/7 burn-in testing and extended PUE validation runs.
Cycle Life & Battery Aging Tests
Run extended charge/discharge cycling programs to evaluate battery pack longevity, capacity fade, and state-of-health (SOH) degradation. Supports calendar aging and cycle life protocols for ESS and EV applications.
Regenerative Battery Tester Quote | Procurement Process
- You Send the Spec DC voltage range, power rating, test application, and communication protocol. We confirm feasibility and issue a quotation within 48 hours.
- Unit Built to Your Spec DC interface, power rating, test modes, and protection thresholds - all configured and factory-tested before dispatch.
- Delivery & Site Prep Unit arrives. You prepare DC connections and AC grid supply. Installation guidance and pre-commissioning checklist provided.
- Commissioning On-site integration supported. Multiple units in parallel if required. BMS communication and protection set-points aligned to your test plan.
- Test Run & Sign-off Engineer executes the validation sequence. Charge/discharge cycles run, data logged, performance verified, system signed off.
Common Question
What DC voltage range does the tester support?
Standard units cover 100V to 800V DC. Extended voltage ranges are available on request for specific battery pack configurations. Please share your battery pack specifications and we will confirm the compatible configuration.
What power ratings are available?
Standard models range from 50kW to 500kW per unit. For higher power requirements, multiple units can be paralleled for cluster control up to 1MW+. Please specify your power and voltage requirements for a tailored quotation.
Can the feedback efficiency really reach 70%?
Yes — at full load under standard grid conditions, measured feedback efficiency reaches 65–70%. Actual values vary slightly by power range, load type, and grid conditions. We confirm all performance data at factory acceptance test before shipment.
What applications are supported?
The tester supports applications include ESS validation, UPS commissioning, EV battery pack testing, BMS integration, and cycle life testing.
How is the unit controlled on site?
The unit supports three control methods: TCP/IP for remote multi-unit management, Modbus RTU for local parallel operation, and direct PC connection for on-site monitoring and control.
Can multiple units be run together for larger ESS projects?
Yes. Multiple units can run in parallel on a TCP/IP network, enabling one control interface to manage total power up to 1MW or beyond. Cluster control software supports synchronized charge/discharge across all units.
How do I get a quotation?
Send your DC voltage range, power requirements, application, and communication protocol. We will confirm the configuration and issue a formal quotation within 48 hours. No obligation — custom configurations are welcome.
What is the lead time and what certifications are available?
Lead time is confirmed during the quotation process based on power rating and customisation requirements. Units carry CE certification as standard and are designed to IEC 60947-1 and IEC 60947-4-1. UL certification and ISO 9001 quality system apply to all units. Please contact us with your specification to receive an accurate delivery timeline.
