Mppt solar charge controller, standing for Maximum Power Point Tracking, represent a significant advancement in solar energy control systems compared to traditional counterparts. These controllers play a crucial role in optimizing the performance of solar panels, batteries, and loads within a photovoltaic system, serving as the brain of the entire setup.

MPPT control is generally achieved through a DC/DC conversion circuit.

The photovoltaic array and the load are connected through a DC/DC circuit, and the maximum power tracking device continuously monitors the current and voltage changes of the photovoltaic array. It then adjusts the duty cycle of the PWM drive signal to the DC/DC converter based on these changes.

For linear circuits, when the load resistance equals the source's internal resistance, the power supply has its maximum power output.

Although photovoltaic cells and DC/DC conversion circuits are highly nonlinear, in an extremely short time frame, they can be considered as linear circuits. Therefore, by adjusting the equivalent resistance of the DC-DC conversion circuit to always be equal to the internal resistance of the photovoltaic cell, the maximum output of the photovoltaic cell, and hence MPPT for the solar panels can be achieved.

MPPT in solar system

Introducing the Tracer BN Series MPPT solar charge controller

According to the latest photovoltaic technology research and development, an integrated all-aluminum heat dissipation housing is adopted, using the standard Modbus communication protocol based on the RS-485 communication bus to maximize meeting communication needs in different scenarios. It is suitable for various types of photovoltaic modules, such as crystalline silicon, amorphous silicon, and crystalline silicon grid-connected modules, making it the best solution for solar home systems and street light control systems.

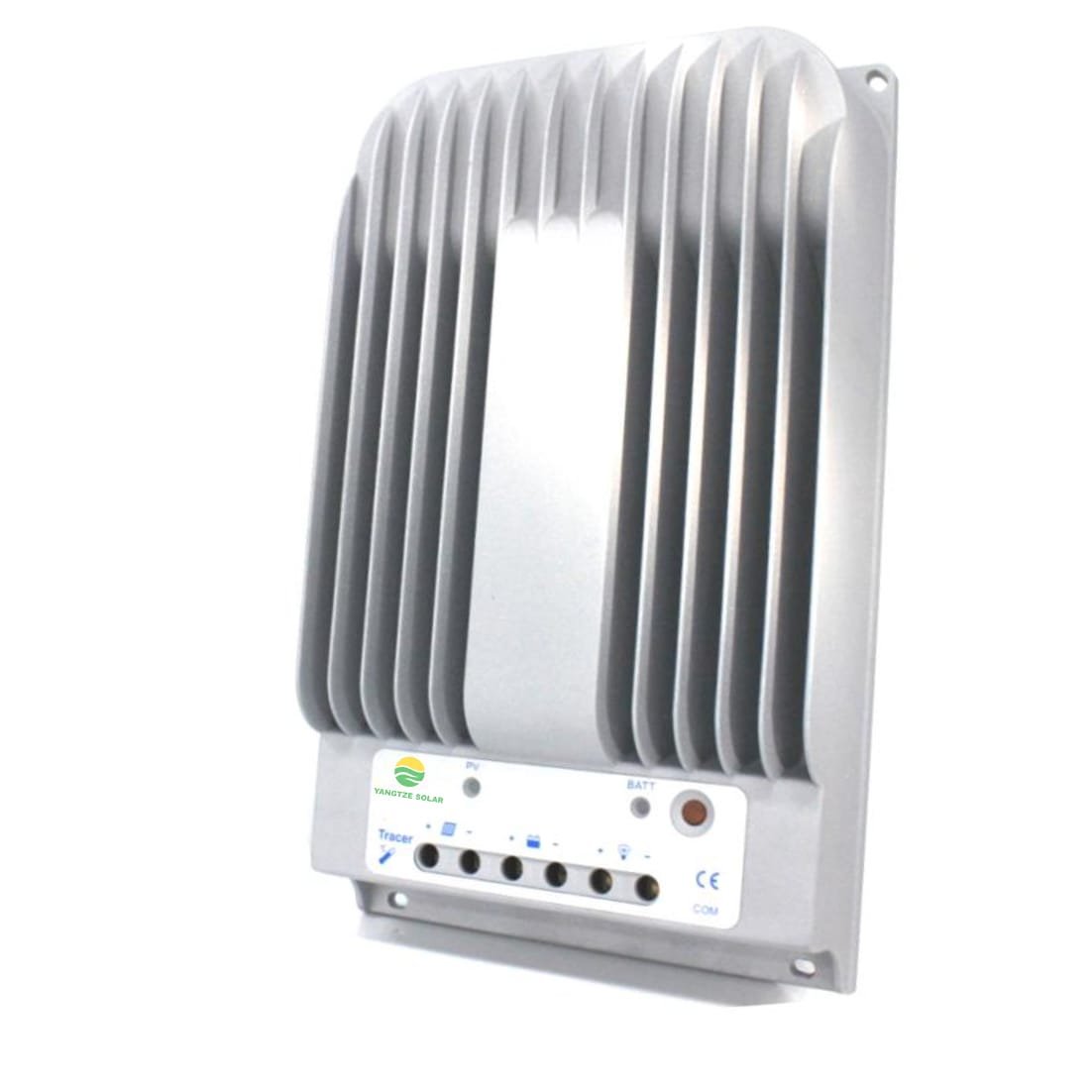

Tracer-BN 12V MPPT

Key features and functionalities explained:

Excellent Cooling Design:
The Tracer-BN series controller adopts a unified integrated all-aluminum heat dissipation housing design, which can effectively reduce the heat generation of the controller itself, achieve natural cooling, and provide excellent heat dissipation performance to improve the overall reliability of the application system. The rugged and durable exterior design, excellent heat dissipation characteristics, truly meet the high reliability industrial standards.

 Flexible Optional Design:

The Tracer-BN series controller provides four types of battery charging programs including sealed, colloidal, open, and user-defined, and provides programmable battery management parameter settings to effectively meet the needs and choices of customers for different battery types, making it convenient for customer use. At the same time, it offers various load control modes such as manual mode, light control mode, light control on + time off mode, and timing mode, enhancing the flexibility of load output.

Key features and functionalities explained:

Communication Requirement Design:
The Tracer-BN series controller has a dedicated RJ45 interface and uses the standard Modbus communication protocol based on the RS-485 communication bus to communicate with other monitoring devices, realizing remote monitoring system parameter settings to fully meet the communication needs of customers in different occasions.

Statistical Monitoring Design:

The Tracer-BN series controller has the function of calculating current power and real-time electricity statistics, allowing users to view the daily, monthly, yearly, and total charging and discharging values of the device. It also comes with optional remote meters and personal computer monitoring software, supporting PC monitoring software, external display unit MT50, making it convenient for users to view real-time data of the controller, set control parameters, and also supporting software upgrade function.

tracer-bn-mppt

Advantages of using mppt solar charge controller for solar installations

There are many benefits to using solar batteries for home, including:

Improving Energy Efficiency:

 The MPPT controller dynamically adjusts the operating point of the solar panels to ensure maximum energy collection at any given time. This means that even under different light conditions, it can automatically adjust to improve energy efficiency, thus maximizing the use of solar energy.

Maximum Power Point Tracking:

The MPPT controller continuously monitors the output of the solar panels and adjusts the voltage and current to maintain the maximum power point. This helps to ensure the maximization of battery charging efficiency, thereby enhancing the performance of the entire solar energy system.

High Adaptability:

The MPPT controller is designed to be flexible and applicable to different types and specifications of solar panels. This means that whether it's monocrystalline, polycrystalline, or other types of solar panels, the MPPT controller can effectively manage the charging process, making it suitable for various configurations of solar energy systems.

Other benefits of using mppt solar charge include:

Energy Cost Savings:

 By improving energy efficiency, the MPPT controller can reduce energy waste and maximize the power output of the solar energy system. This means that users can effectively utilize solar energy, reduce reliance on other energy sources, and ultimately lower energy costs.

Environmentally Friendly:

As the MPPT controller helps maximize solar energy utilization, it reduces the demand for traditional energy sources, thereby contributing to the reduction of greenhouse gas emissions and resource consumption. By promoting the use of renewable energy, the MPPT controller helps to reduce the negative impact on the environment and drive the development of clean energy.

Single phase inverter with battery

The schematic diagram of the current market photovoltaic system is as shown on the left.

Usually, MPPT and inverter equipment are integrated to form a hybrid inverter, which makes the installation of the entire energy storage photovoltaic system more simple and more in line with the needs of convenient home installation.
