Generally, the magnitude of the charging and discharging current is represented by the charging and discharging rate C, that is, the charging and discharging rate C = charging and discharging current / rated capacity; for example, when a battery with a rated capacity of 100 Ah is discharged at 20 A, its discharge rate is 0.2C. The discharge rate of the battery, 1C, 2C, 0.2C, is a measure of the speed of discharge: it indicates the speed of discharge.

For example, if a battery has a capacity of 60 Ah of lithium battery, then 1C is 60 A charging and discharging, 2C is 120 A charging and discharging, and 0.5C is 30 A charging and discharging. If it is a 50 Ah lithium iron phosphate battery, then 1C is 50 A charging and discharging, 2C is 100 A charging and discharging, and 0.5C is 25 A charging and discharging. C represents the discharge rate. A few C is the capacity multiplied by a few. Some batteries have high-rate batteries. High-rate batteries can discharge at more than 10C, while ordinary batteries can only discharge at 3C or less.

1C discharge is 1 hour, 2C is 0.5 hours, and 0.5C is 2 hours (the higher the discharge current, the shorter the discharge time).

The charging or discharging current value and the charging/discharging rate can be obtained by the following:

C-Rate (C) = Charging or discharging current (A) / Battery rated capacity

In addition, the expected available time of the battery under a given discharge capacity can be obtained by the following:

∴Battery usage time = Discharge capacity (Ah) / Discharge current (A)

High-power lithium battery discharge capacity.

For example, in high-power products, the MicroBat 2.5kWh model has a rated capacity of 50Ah. Lithium ion battery.

1C discharge current of this model

What are the conditions for the 1C discharge current of this model?

Charging (or discharging) current (A) = Battery rated capacity * C-rate = 50* 1(C) = 50 A

This means that the battery can be used for 1 hour under the current discharge conditions.

The discharge current value under 20C discharge conditions is 50(A)*20(C)=1000A This battery can still perform well even under 20C discharge conditions. Here is the available time of the battery when the battery capacity is displayed as 50Ah

Use time (h) = Discharge capacity (Ah) / Applied current (A) = 50(Ah) / 1000(A) = 0.05 hours = 96A 3 minutes. Indicates that when the load current is 1000A, the battery can be used for 3 minutes (0.05 hours)

It should be noted that the available time of the battery is a theoretical value. In actual use, it will be affected by factors such as the internal loss of the battery and the ambient temperature.

What is the voltage of a 50ah lithium battery?

The voltage range of a lithium iron phosphate battery is generally between 3.2V and 3.6V. The nominal voltage is 3.2V, the upper limit charging voltage is 3.6V, and the discharge cutoff voltage is 2.0V. However, the performance of the battery may vary depending on the materials, electrolytes, and manufacturing processes used by different manufacturers. This type of lithium-ion battery has excellent safety and cycle performance. It will not explode.

A lithium iron phosphate battery pack is made up of a series of cells to achieve the required voltage for the device. The battery pack voltage = N * number of series. The series voltage of a lithium battery increases and the parallel capacity increases. For example, the MicroBat 2.5kWh balcony battery system has a current of 50Ah and a lithium iron phosphate cell voltage of 3.2V. Therefore, 16 cells must be connected in series to achieve 51.2V (3.2V x 16 = 51.2V).

What type of battery management system (BMS) is needed for a 50ah/60ah lithium battery?

If you want to build a safe and high-performance battery pack, you will need to know how to choose a battery management system (BMS) for lithium batteries. The main function of a BMS is to prevent the battery pack from being overloaded. Therefore, to make it effective, the maximum rating of the BMS should be greater than the maximum rated current of the battery.

The hardware topology of a BMS can be divided into four types: centralized, modular, distributed, and master/slave.

  • Centralized BMS architecture

A centralized BMS connects all battery packs to a central controller. This architecture has some advantages. It is more compact and is often the most economical, as there is only one BMS.

However, centralized BMS also has some disadvantages. Since all batteries are directly connected to the BMS, the BMS needs many ports to connect all battery packs. This means that a large battery pack requires a lot of wires, cables, and connectors, which can make troubleshooting and maintenance difficult.

Centralized-BMS

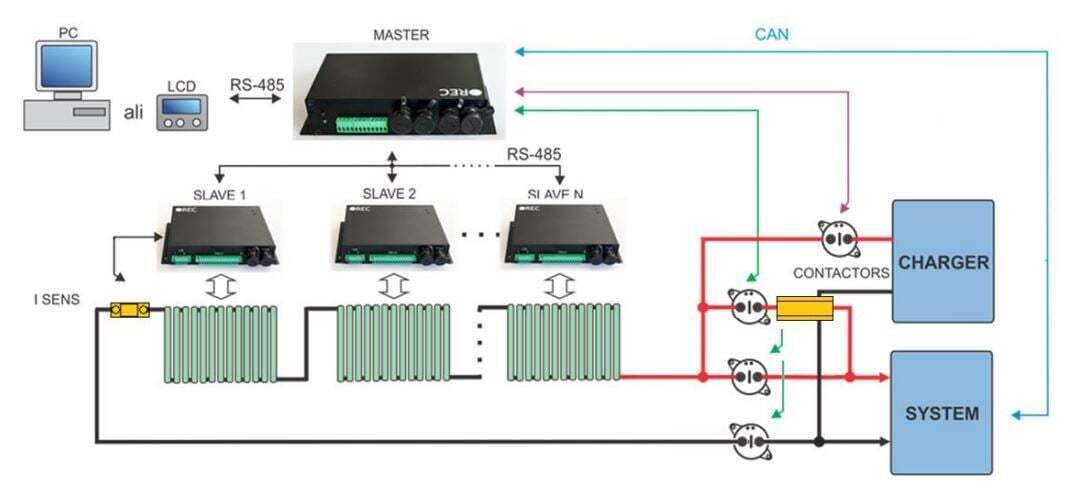

  • Master/slave BMS

Master/slave BMS is similar to modular BMS, but in this case, the slave's main function is to transmit measurement data. The master is responsible for processing data, controlling the system, and communicating with external devices.Master/slave BMS has some advantages. It can reduce costs, as the slave's functions are often simpler and require less hardware. Additionally, it can improve reliability, as if the slave fails, the master can still continue to operate.The type of BMS required for a 50Ah/60Ah lithium iron phosphate battery depends on the specific application of the battery pack. If the battery pack is a small, simple application, such as an electric bicycle or power tool, a centralized BMS is a good choice. Centralized BMS is compact and cost-effective.For larger, more complex applications, such as electric vehicles or energy storage systems, modular BMS or distributed BMS may be a better choice. Modular BMS and distributed BMS can simplify troubleshooting and maintenance and improve reliability.

Master/slave BMS
Modular BMS topology
  • Modular BMS topology

A modular BMS is similar to a centralized BMS, but it breaks the system down into multiple redundant modules. Each module connects to a specific part of the battery pack and communicates via dedicated wiring harnesses. In some cases, these modules may be controlled by a master module. The master module is responsible for monitoring the status of the slave modules and communicating with external devices.

Modular BMS has some advantages. It can simplify troubleshooting and maintenance, as each module can be independently checked. It also makes it easier to scale up to larger battery packs, as new modules can be added.

Modular BMS also has some disadvantages. It may be more expensive than a centralized BMS, as it requires more hardware. Additionally, there may be redundancy if certain features are not required in some applications.

  • Distributed BMS architecture

Distributed BMS is different from other topologies, which encapsulate the electronic hardware and software in modules and connect them to the batteries via bundled add-on wiring. Distributed BMS integrates all electronic hardware onto a control board that is directly placed on the battery or module. This reduces the amount of wiring, as each BMS independently handles computation and communication.

This integrated form, although it seems simple, also brings some potential problems. Since the control board is located inside the module, troubleshooting and maintenance may be more difficult. Additionally, the cost may also be higher, as the system contains more BMS.

Distributed BMS architecture

What are the environmental considerations for using 50ah/60ah lithium batteries?

Lithium-ion batteries have a number of advantages, including high energy density, long service life, and low self-discharge rate. These advantages make them ideal for a wide range of electronic devices, from portable devices to grid storage. In the fields of residential storage, commercial and industrial storage, and balcony PV systems, lithium-ion batteries are the preferred choice because they are lightweight with high energy density.

However, lithium-ion batteries also have some disadvantages. They are particularly sensitive to extreme low temperatures and extreme high temperatures. If a battery pack is heated or cooled outside of its optimum temperature range of 20~40°C, its performance and service life will be significantly reduced. In addition, even a 1°C change in temperature can affect the safety, charging acceptance, and reliability of the battery management system and the battery itself.

To address this issue, our battery engineers have built a heating system into the balcony battery system (MicroBat 2.5kWh) to solve the winter problem. In general, self-discharge increases with increasing temperature. So even at -20°C, the battery can still discharge normally. Lithium-ion batteries can be used in a temperature range of -20°C to +55°C. However, charging can usually only be done in a temperature range of +0°C to +45°C. The same is true for 50Ah/60Ah lithium batteries.

Conclusion

50Ah/60Ah lithium batteries have a number of advantages, including high energy density, long service life, and low self-discharge rate. These advantages make them ideal for a wide range of electronic devices. However, when using them, it is important to be aware of their discharge rate, voltage, BMS type, and environmental factors.
