Customized Load Banks: A Step-by-Step Engineering Guide to Bespoke Power Testing
Standard catalog load banks are built for standard problems. If your project involves a non-standard voltage, a thermal envelope that off-the-shelf cooling cannot handle, or a commissioning protocol no generic control panel can automate — you are already outside the spec sheet. Below, we bypass the brochure language and break down exactly how custom engineering solves specific thermal, regulatory, and mechanical boundary conditions.
What Can We Customize?
| Customization Area | Available Range / Options | Typical Application |
|---|---|---|
| Voltage Customization | Low: 110V–480V Medium/High: 6.6kV–33kV | Marine switchboards, data center UPS distribution |
| Capacity Range | 10kW rack-mounted → 5MW+ containerized | Hyperscale data center commissioning |
| Cooling Type | Forced Air-Cooling / Advanced Liquid-Cooling / Hybrid | High-density data centers, hot-climate sites |
| Load Element | Pure Resistive / Inductive / RLC Integrated | Generator testing (R+L), UPS verification (R), grid simulation (RLC) |
| Control & Communication | HMI, SCADA, Modbus RTU/TCP, Ethernet/IP, Profibus, BMS | Automated commissioning, remote site monitoring |
| Enclosure & Protection | IP20–IP65, marine anti-corrosion coating | Shipboard, offshore platforms, coastal sites |
Beyond these, we offer fully integrated LCB series liquid-cooled load banks for heat density applications that forced-air cooling cannot manage.
Key Industries We Serve
Data Centers

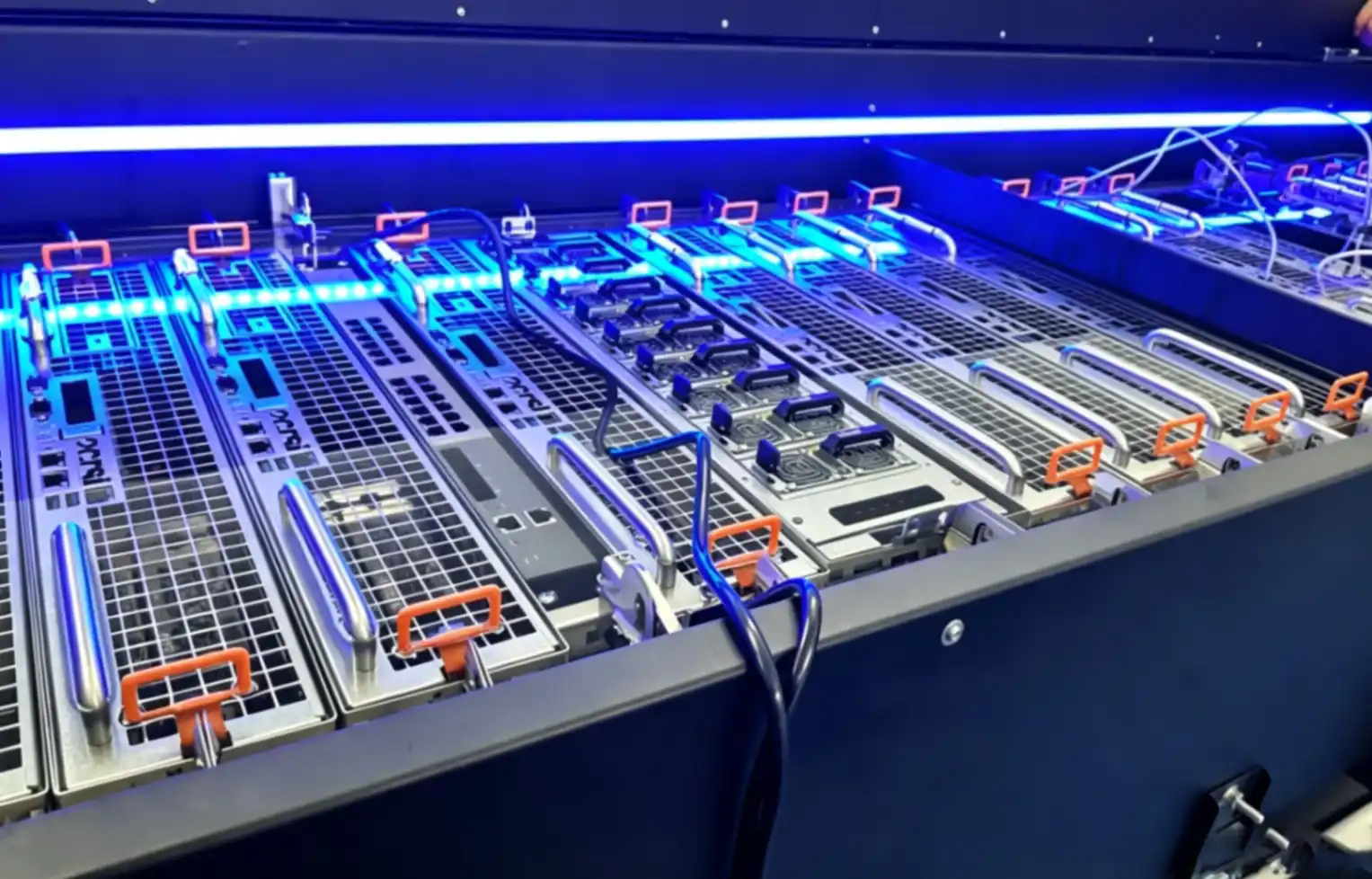

Modern data center commissioning is about simulating actual heat dissipation factor (HDF) and thermal load profiles of high-density AI server racks — routinely 30kW to 100kW+ per cabinet. At those densities, air-cooled load banks cannot replicate coolant flow dynamics your cooling infrastructure was sized for. We engineer DCL series rack-mounted liquid-cooled load banks that slot directly into server racks and reproduce the thermal signature your CDU was designed to handle. Up to 5 MW containerized systems with 1% step-load resolution for hyperscale campuses.
Generator Testing & Marine & Offshore

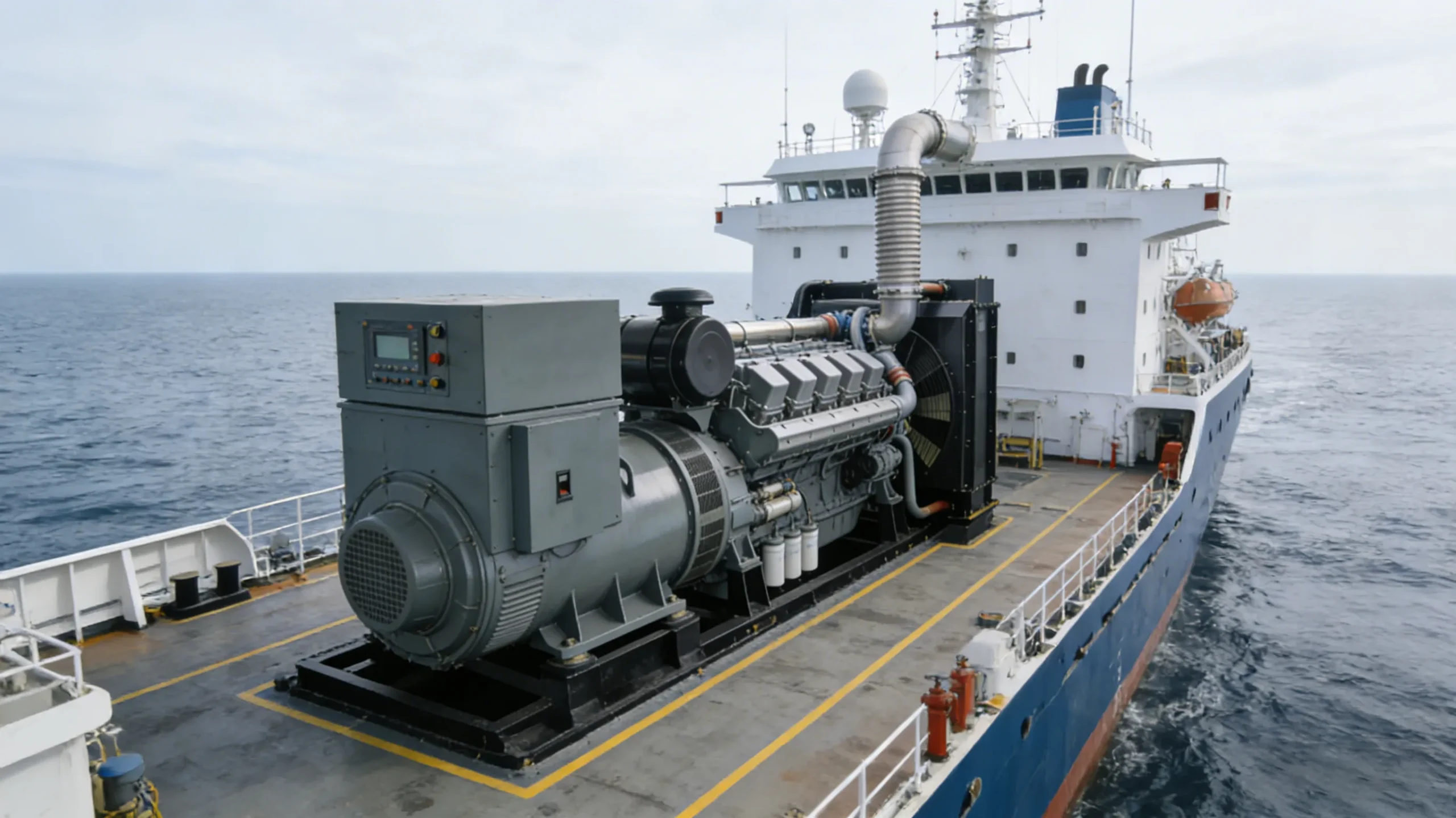

Generator manufacturers need precise resistive-inductive loads to verify transient response and frequency stability per ISO 8528-5. We integrate RLC elements with automated test sequences for factory acceptance testing (FAT). For shipboard and offshore applications, we build to IP55/IP65 with marine-grade anti-corrosion coatings in compact form factors that fit through standard doorways.
Engineering Process & Manufacturing
- Requirement Capture (Days 1–2): Voltage, frequency, power rating, duty cycle, cooling constraints, control interface, environment.
- CFD Thermal Simulation (Days 3–5): We model airflow and temperature rise to prevent thermal overrun — the #1 failure point in load bank commissioning.
- Design Review & Approval (Week 2): Single-line diagrams, enclosure drawings, control logic, project timeline — before any steel is cut.

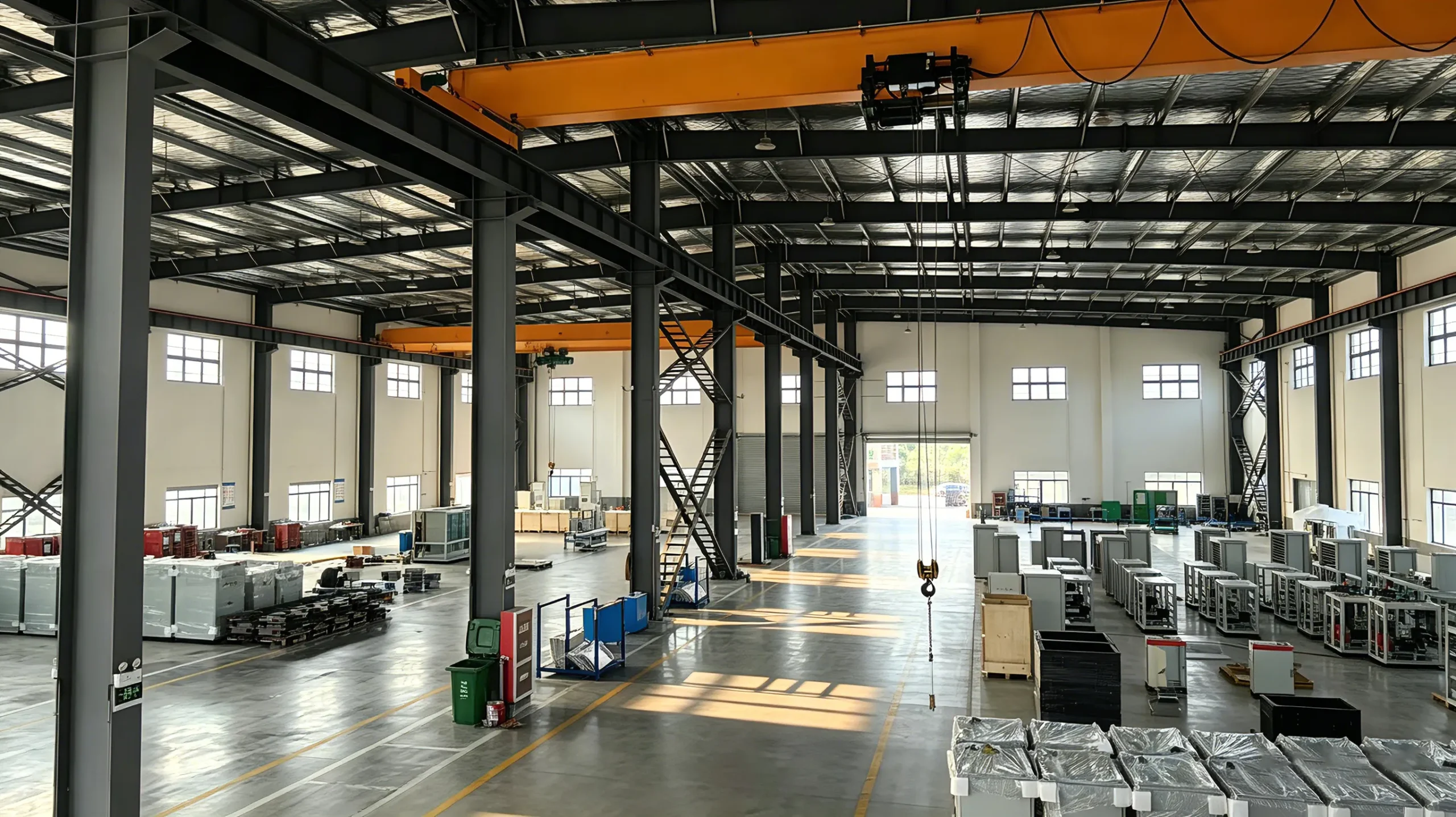

- Manufacturing & FAT (Weeks 3–8): All components sourced or fabricated in-house. Every unit FAT-tested before shipment.
Certifications & Quality Standards
Certification
Quality Management
Rotating Electrical Machines
Generator Set Testing
Frequently Asked Questions
Ready to Specify Your Custom Load Bank?
Tell us your voltage, power rating, cooling constraints, and control requirements. We respond with a preliminary specification and timeline within 2 working days.
Request a Custom QuoteAbout the Author
This guide was prepared by the Batterlution Engineering Team, which designs and manufactures resistive, reactive, and liquid-cooled load banks for data center, marine, and industrial applications. ISO 9001 certified facility; every custom unit is FAT-tested before shipment.
*/
