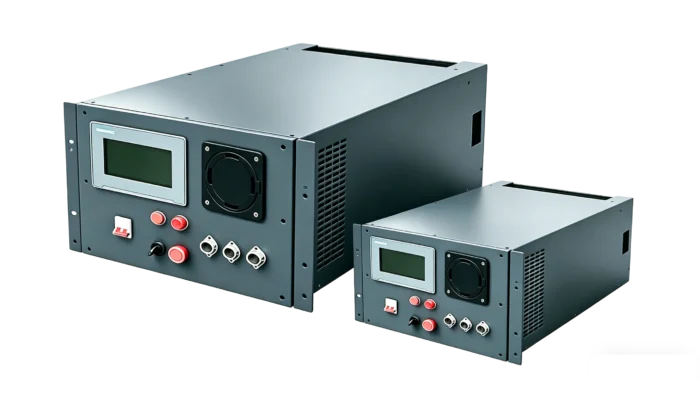

40kW rack-Mounted Liquid Cooled Load Bank
RLC Series is a high-performance, 19-inch rack-mounted liquid-cooled load bank designed for CDU performance testing and DLC cooling loop verification. It works with primary or secondary cooling loops to simulate high-density IT thermal loads, ensuring precise validation of liquid cooling infrastructure in AI and hyperscale data centers. Multiple units can be monitored in real-time to achieve thermal balance across the cluster.
30kW / 40kW / 50kW Rated Power
19-inch 4U / 5U Compact Rack-mount Design
Real-time Flow, Pressure & Temperature Monitoring
AISI 316 Stainless Steel (316SS) Internal Piping
High-Precision PWM Step Load Control
Quick-Disconnect Leak-Free Couplings
RS485 & Ethernet Remote Management
Comprehensive Safety (Over-temp, Leak & Flow Alarms)
RLC Series: Rack-Mount Liquid-Cooled Load Bank for CDU & DLC Rack Testing
Real-time flow rate, pressure, and inlet/outlet temperature monitoring in a 19-inch rack form factor — purpose-built for CDU performance verification, Direct Liquid Cooling (DLC) rack validation, and data center thermal management testing.
Why RLC
Rack-integrated liquid cooling diagnostics for next-generation data centers
Real-Time Flow Monitoring
Continuous flow rate measurement detects coolant delivery issues before they cause equipment failure.
Pressure Monitoring
Live inlet and outlet pressure data validates CDU pump performance and identifies leaks or blockages.
Inlet / Outlet ΔT Detection
Precise temperature differential measurement confirms actual thermal transfer matches CDU specifications.
Modular & Expandable
Modular architecture supports incremental capacity expansion — start at 30 kW and scale to match growing DLC rack deployments.
AI GPU Rack Ready
Purpose-built for NVIDIA H100 / GB200 DLC rack commissioning — rack-integrated form factor mirrors production cooling architecture.
Technical Specifications
Select a model to view its detailed parameters
| Parameter | Value |
|---|
Applications
Where the RLC series delivers proven results
CDU Performance Verification
Apply rated thermal load to validate CDU capacity, pump curves, and control response — before IT equipment is installed.
DLC Rack Commissioning
Simulate the full thermal load of a Direct Liquid Cooling rack — verify manifold connections, leak integrity, and flow balance at rated conditions.
Liquid Cooling Loop Validation
End-to-end loop testing from CDU to rack and back — confirm pressure drop, flow distribution, and thermal performance meet design targets.
Certifications
Compliance you can count on
CE Marked
Standard
UL Listed
Optional
IP54 / IP55
Ingress Protection
Expandable Modular Architecture
Multiple RLC units connect via TCP/IP for coordinated multi-rack commissioning. Each unit operates independently or as part of a synchronized cluster — scaling from a single 30 kW rack load bank to 1 MW+ across up to 20 units without additional control hardware.
